Hi John

Normally you see studs going up into the intakes as you have.  Then bolts into the exhaust manifolds.  That way you don’t have this situation.  If it were me I’d use a couple jamb nuts on the intake studs to completely remove them.

If you want to eventually replace the studs on your exhaust manifolds I believe the thread is 5/16-18.  One inch long.  I’ll double check.

D&K

Sent from my iPhone

On Jul 23, 2025, at 11:09, mguarneri via Chrysler 300 Club International <chrysler-300-club-international@xxxxxxxxxxxxxxxx> wrote:

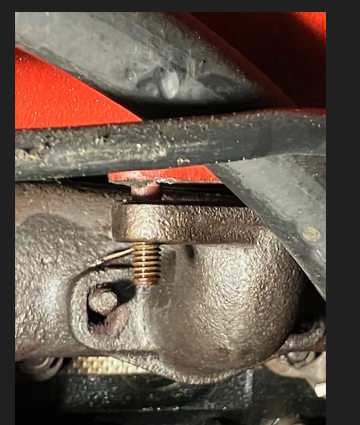

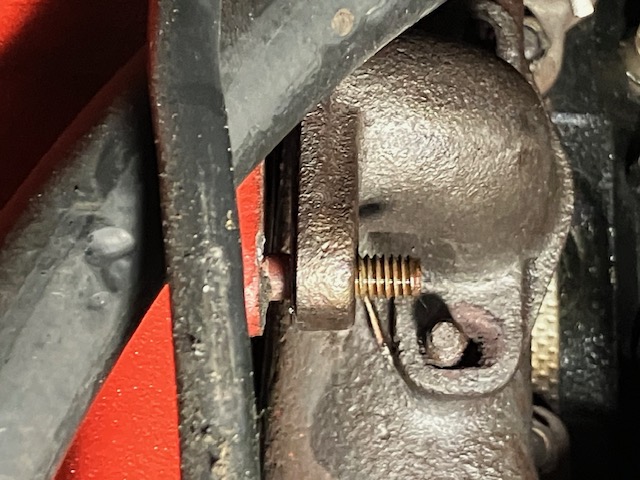

I am attempting to replace the gaskets on my G, which new ones from Bob M should be arriving shortly.  I am totally confused how to remove the elbow (see attached).  I can't pull it out straight nor can I just drop it down.



Can someone offer some advise.



Thanks...John



--
