Re: {Chrysler 300} In need of a long ram intake

[John Grady <jkg@xxxxxxxxxxxxxxxxx>]

remove  the exhaust heat set up
close the bottom with covers . do not  need it unless driving below 35 out and even then it is ok as whole engine soon warms up . convert to electric  chokes .
Causes way more tuning trouble than any minor gain

I bet fully 1/2 of ram 300 ‘ are driving around  with full exhaust heat stuck on .

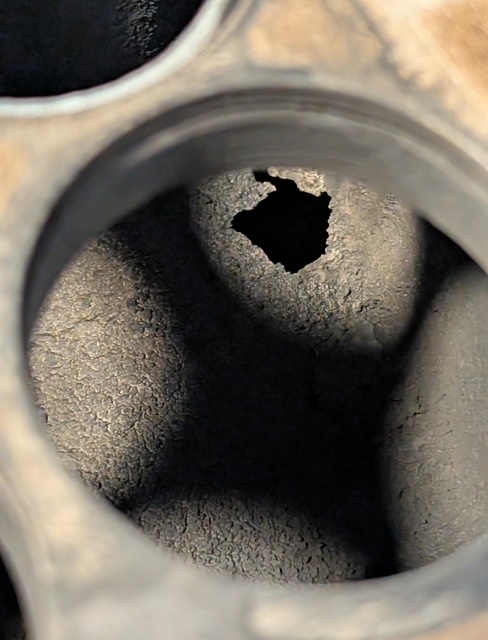

Two F i had over the years were burned through , figured it out 50 years ago when I could not get a good idle no matter what I did — lots of time and  $ wasted chasing imaginary carb problems.   Later found hole like that one you show Even when “ working   right   “ it is a sad joke as both sides never stay in sync .
 One  choke going off before other gives loping  idle  and stalls .

When parked , with a working  exhaust flap , it   closes forcing exhaust through the rams at the next cold start ;

however when parked a long   time say over winter , shaft rusts solid to manifold, never to open again on its own . The car runs  awful     and  one banzai run with it closed melts ram , vacuum gone cannot be made to idle right . This thing  was absolutely was half   baked  at release  ,,why so many  rams were pulled  due to undriveable by average non enthusiast  person  during warmup .

I watched this as a kid , hot rodders bought pulled rams  or they ended up in trunk

We all cut it slack. because we  love  the car

So bad Chrysler dropped  it in 62 , when it came back  on J snd K no heat riser valve
modern cars do not  have  them..

 Edelbrock makes  a big  deal of “ Air gap intake “ 1000’s in use no heat in it at all , solid metal joining the intake passages to  manifold head fastening is all removed  , so air blows over and under  it just like ram . Performance advantage claimed with cooler charge ,( correct)  modern gas does not need 1930’s “ hot spot” in fact opposite problem now  , evaporates in carb
Even mopar went water heat on race rams, 400 hp F
YMMV
You can hear the characteristic rattle when free , — no rattle = stuck shaft . Tie it open  . Be happy
jkg


> On Oct 3, 2025, at 4:06 PM, 'dave mason' via Chrysler 300 Club International <chrysler-300-club-international@xxxxxxxxxxxxxxxx> wrote:
>
> Hi Jay
> Due to the nature of your burn through, check and ensure your exhaust heat riser valve is working on that side… your counterweight should flop forward when warm- make sure it is moving.
>
> Sent from my iPhone
>
>> On Oct 3, 2025, at 13:16, 'Jay Williamson' via Chrysler 300 Club International <chrysler-300-club-international@xxxxxxxxxxxxxxxx> wrote:
>>
>> Hello,
>>

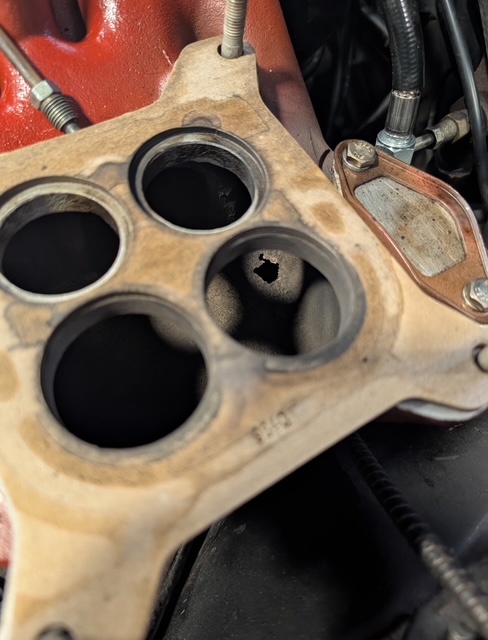

>> Are there any Leeds on a drivers side 300 F intake manifold? Mine is burnt through.
>> Or, has anybody ever had one of these repaired?
>>
>> Thanks
>>
>> --
